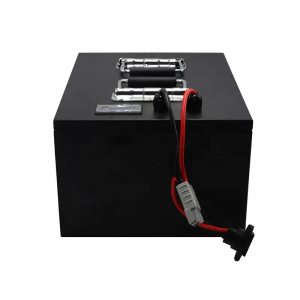

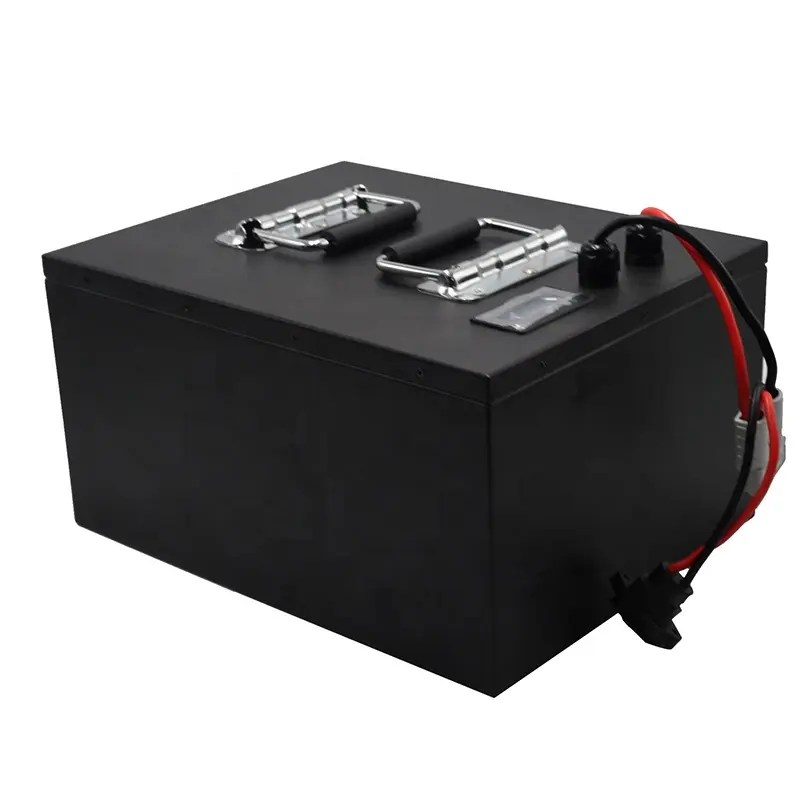

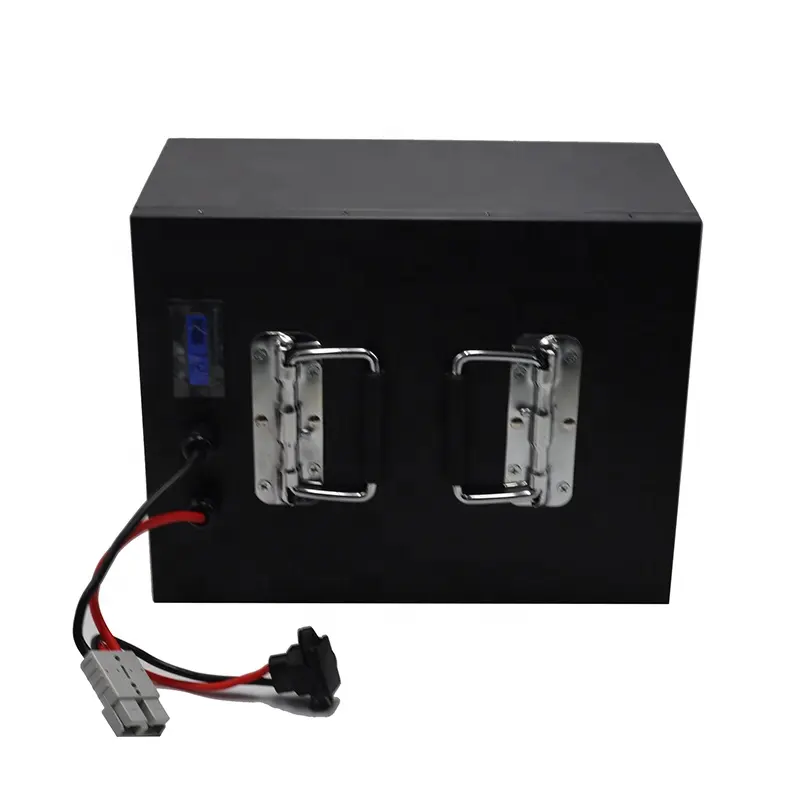

ईवी कारों के लिए अनुकूलित LiFePO4 बैटरी पैक 72v 60ah इलेक्ट्रिक वाहन बैटरी लिथियम आयन पैक

2023-06-06 02:13

विशिष्टता

ब्रांड का नाम	ऑल - इन - वन
नमूना	AIN7260
गारंटी	5 वर्ष
नाममात्र वोल्टेज	76.8V
नाममात्र क्षमता	[email protected]/customize
ऊर्जा	4416Wh
आंतरिक प्रतिरोध	≤50mΩ
साइकिल जीवन	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
स्व निर्वहन	25 ℃ पर per3.5% प्रति माह
अधिकतम चार्ज वोल्टेज	87.6 V
चार्जिंग मोड	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
आवेशित धारा	30A
मैक्स.चार्जिंग करंट	60A
डिस्चार्जिंग करंट	30A
Max. discharge Continuous Current	60A
मैक्स.पुलस करंट	120A(<3S）
कट-ऑफ वोल्टेज का निर्वहन	60V
चार्ज तापमान	0 ℃ से 45 ℃ (32 (से 113 () @ 60 Rel 25% सापेक्ष आर्द्रता
डिस्चार्ज तापमान	-20 ℃ से 60 ℃ (-4 ℉ से 140 () @ 60 Rel 25% सापेक्ष आर्द्रता
भंडारण तापमान	0 ℃ से 45 ℃ (32 (से 113 () @ 60 Rel 25% सापेक्ष आर्द्रता
जल धूल प्रतिरोध	IP55
सेल और प्रारूप	LFP  60AH 24S1P/customize
झलार	Metal Case
आयाम (एल * डब्ल्यू * एच * वें)	अनुकूलित करें
वजन	50kg
टर्मिनल	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
चार्ज विधि	सीसी सीवी
Terminal Type	M6 or Anderson or another bolt screw/customize
प्रमाणपत्र	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

अनुस्मारक

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

आवेदन

हमारी फैक्टरी

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

पैकिंग और शिपिंग

पैकिंग

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

शिपिंग

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



सामान्य प्रश्न

प्रश्न: मुझे भुगतान कैसे करना चाहिए? भुगतान के कौन से तरीके स्वीकार करते हैं?
A: T/T, PayPal, Western Union.

प्रश्न: नमूना आदेश स्वीकार्य है?
एक: हाँ, बैटरी के अधिकांश के लिए, गुणवत्ता परीक्षण के लिए नमूना आदेश उचित और स्वीकार्य है।

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

प्रश्न: आपकी वारंटी क्या है?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. नुकसान के लिए, जैसे बैटरी उभार/वेल्डेड, बिना सुरक्षा के बैटरी पैक चार्जिंग के कारण बीएमएस।
